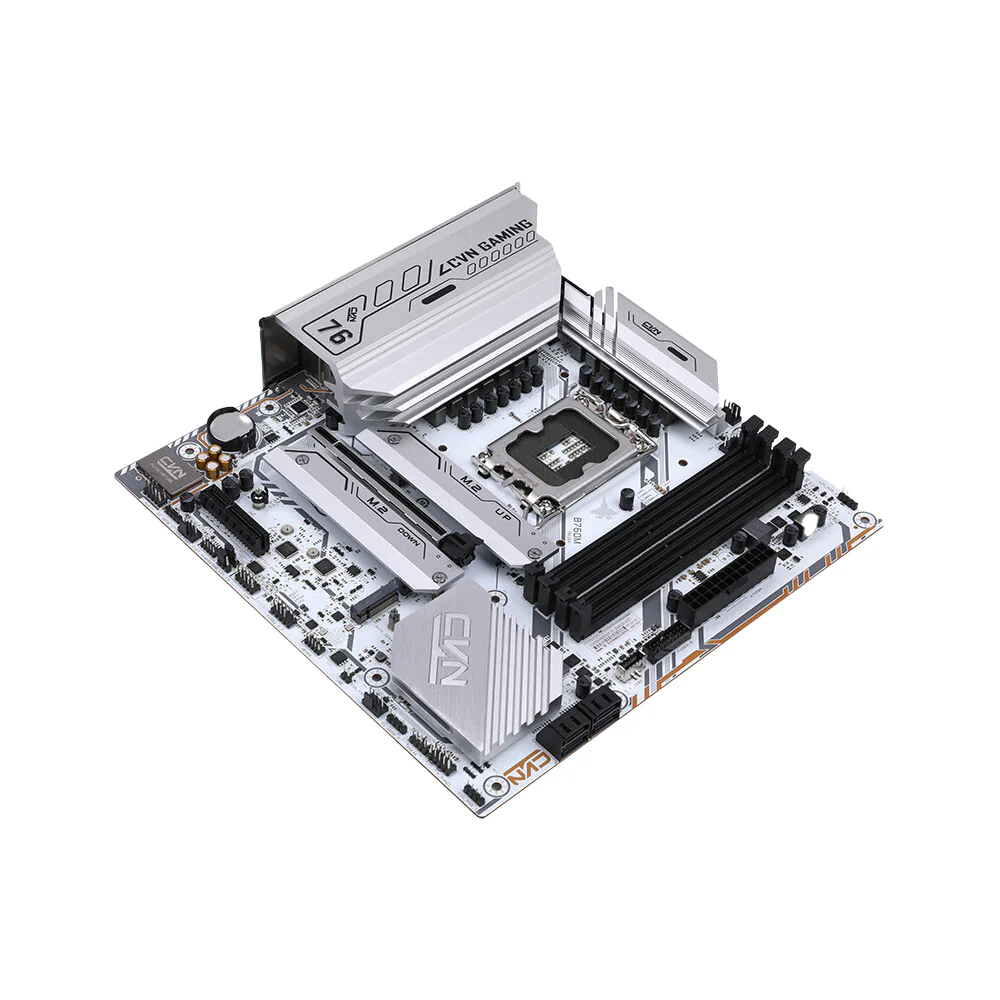

Colorful CVN B760M Frozen Wifi V20 mATX Motherboard
The Colorful CVN B760M Frozen WiFi V20 is a stylish white micro‑ATX LGA 1700 board supporting 12th–14th Gen Intel CPUs. It packs a 12+1+1 DrMOS 55 A VRM, three PCIe 4.0 M.2 slots, PCIe 5.0 x16 GPU slot, Wi‑Fi 6 + Bluetooth 5.2, Realtek 2.5 Gb LAN, and full-cover frost-cooling armor—ideal for compact gaming builds.
Frost Armor & Clean Cabling - Equipped with full-coverage frost-style armor with condensation fins for optimized thermal dissipation and a hidden rear 24‑pin connector, delivering clean cable routing and aesthetic builds.
Triple M.2 & PCIe 5.0 x16 Slot - Offers three PCIe 4.0 x4 M.2 slots plus a reinforced PCIe 5.0 x16 slot, providing ample SSD capacity and future GPU upgrade paths.

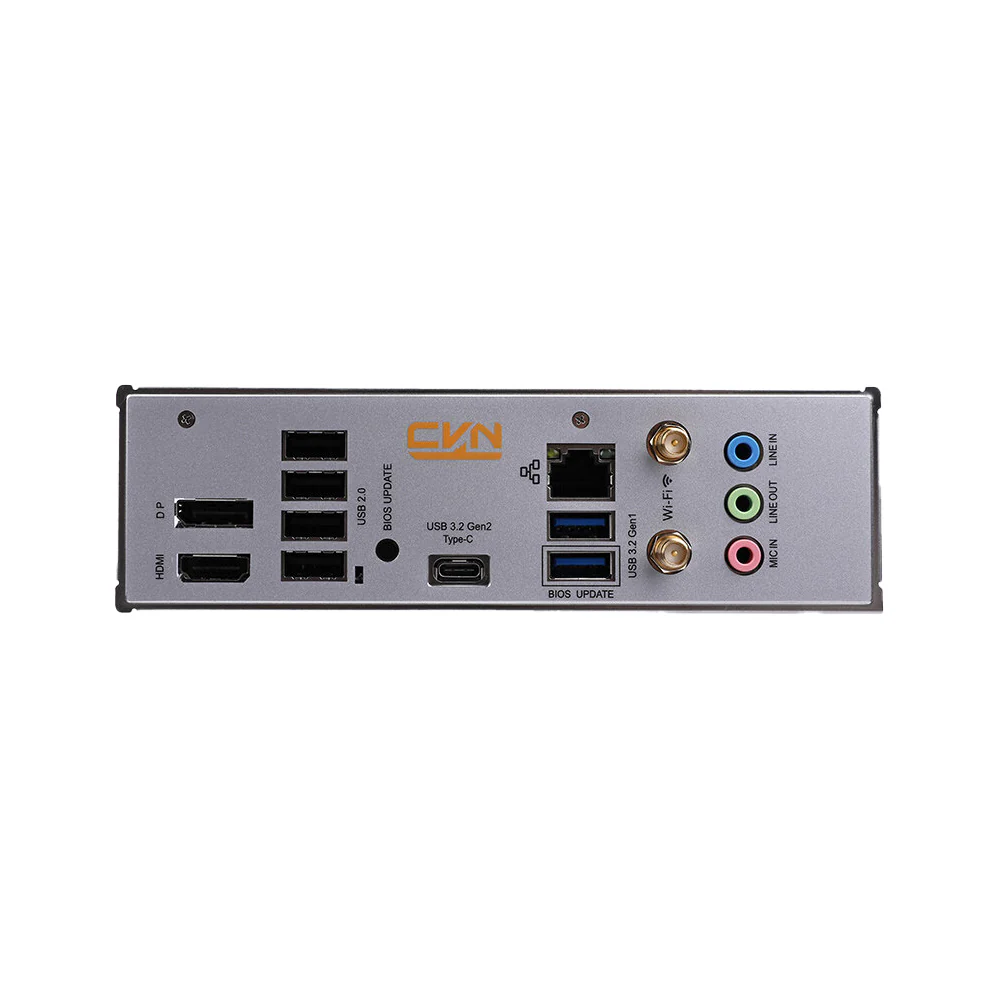

Networking & I/O - Features Realtek 2.5 Gb Ethernet, Intel AX201/AX200 Wi‑Fi 6 with Bluetooth 5.2, plus rear ports including USB 3.2 Gen2 Type-C, dual Gen1 Type-A, HDMI 2.0, and DisplayPort 1.2.
Memory & Power Design - Utilizes four DDR4 DIMMs (up to 128 GB @ DDR4‑4800 OC), 12+1+1 power phases with DrMOS 55 A, six board-protection features, support for BIOS Flashback via I/O backplate, and over 200 QA test passes.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Colorful CVN B760M Frozen WiFi V20 is a stylish white micro‑ATX LGA 1700 board supporting 12th–14th Gen Intel CPUs. It packs a 12+1+1 DrMOS 55 A VRM, three PCIe 4.0 M.2 slots, PCIe 5.0 x16 GPU slot, Wi‑Fi 6 + Bluetooth 5.2, Realtek 2.5 Gb LAN, and full-cover frost-cooling armor—ideal for compact gaming builds.
Frost Armor & Clean Cabling - Equipped with full-coverage frost-style armor with condensation fins for optimized thermal dissipation and a hidden rear 24‑pin connector, delivering clean cable routing and aesthetic builds.
Triple M.2 & PCIe 5.0 x16 Slot - Offers three PCIe 4.0 x4 M.2 slots plus a reinforced PCIe 5.0 x16 slot, providing ample SSD capacity and future GPU upgrade paths.
Networking & I/O - Features Realtek 2.5 Gb Ethernet, Intel AX201/AX200 Wi‑Fi 6 with Bluetooth 5.2, plus rear ports including USB 3.2 Gen2 Type-C, dual Gen1 Type-A, HDMI 2.0, and DisplayPort 1.2.
Memory & Power Design - Utilizes four DDR4 DIMMs (up to 128 GB @ DDR4‑4800 OC), 12+1+1 power phases with DrMOS 55 A, six board-protection features, support for BIOS Flashback via I/O backplate, and over 200 QA test passes.
